TEG Dehydration & Fuel Gas Treatment Package

TEG Dehydration & Fuel Gas Treatment Package

Category: Our News & Articles

Project: Recent modular project for Iraq

Package: TEG Dehydration & Fuel Gas Treatment Package

Capacity: 155 MMSCFD

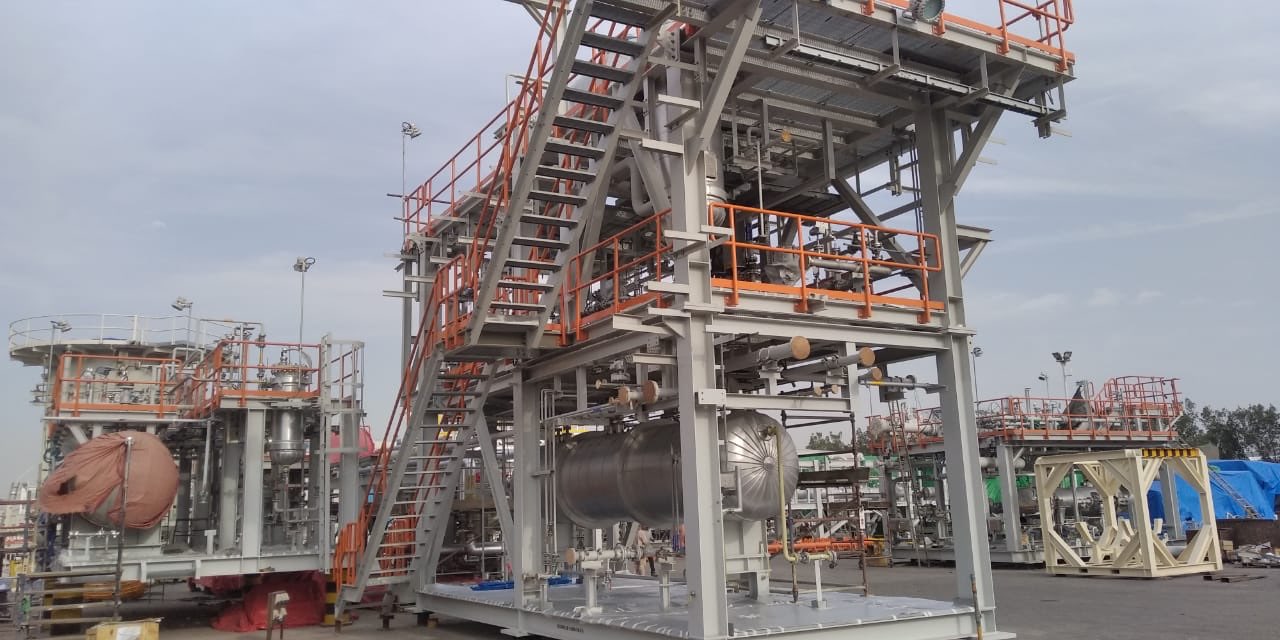

The process Module for TEG Dehydration & Fuel Gas Treatment Package are fabricated in UAE and  transported from Jebel Ali Port by ship to Iraq on Date: June to  September 2023.

 Design, Engineering and procurement have been performed in Thailand.

Fabrication has been performed in UAE.

This is a successful project completed in approximately 20 months







Scope of Work:

Scope of work is to design, procurement, fabrication, factory test and site commission the complete package

Includes process / performance guarantees

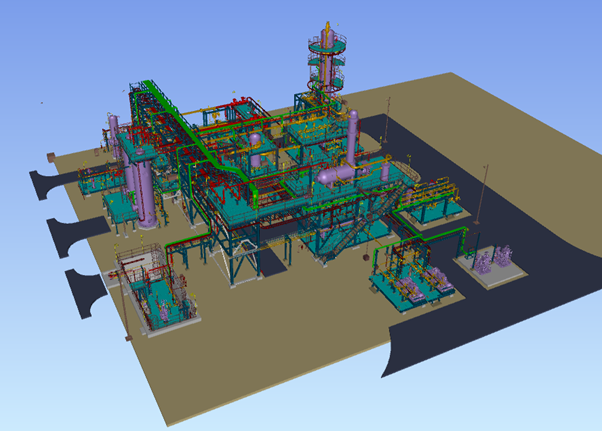

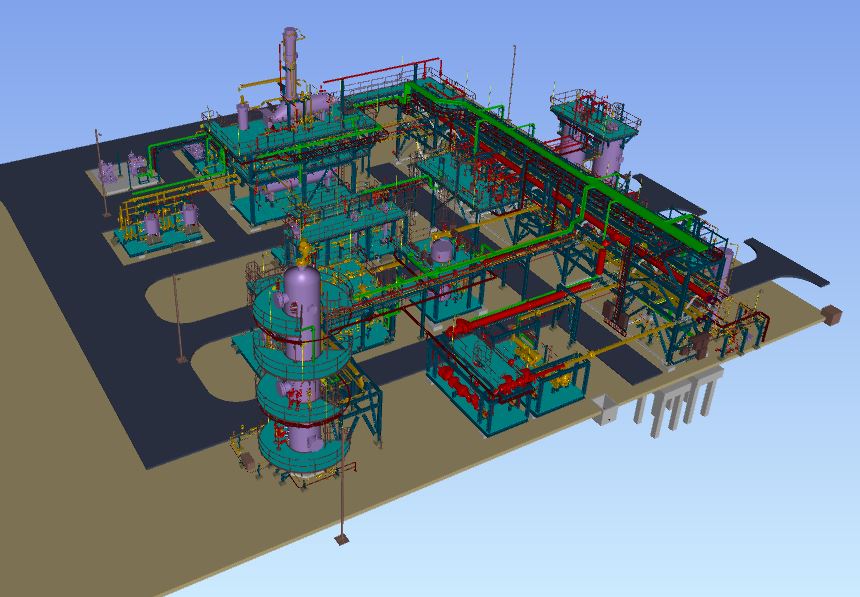

 The Module is included for 9 skids, pipe racks and 3 standalone columns.

  • GAS VALVE SKID (156-SK01A/B)
  • GAS/LEAN TEG HEAT EXCHANGER SKID (156-SK02)
  • FLASH VESSEL SKID (156-SK03)
  • TEG RECIRCULATION PUMPS SKID A/B (156-SK04 A/B)
  • REBOILER SKID (156-SK05)
  • PIPE RACK (156-SK06)
  • DUST FILTER SKID (510-SK07)
  • CHEMICAL INJECTION SKID ANTIFOAM (156-SK08A)
  • DRY GAS SEPARATOR SKID (156-SK09)
  • TEG ABSORBER (SA01)
  • TEG PREPARATION DRUM (SA03)
  • DESULFURIZATION ABSORPTION TOWER (156-SA05)



12 December 2023

Viewed 745 time
